• 產品介紹 Product Introduction

       導熱脂是由導熱填料和基礎樹脂組成，索邁電子提供含硅和非硅系列導熱脂，含硅導熱脂使用硅油做基礎油，使用溫度高達180℃，而非硅導熱脂最高使用溫度高達150℃。導熱脂可以人工刷涂或者采用絲網印刷來作業。

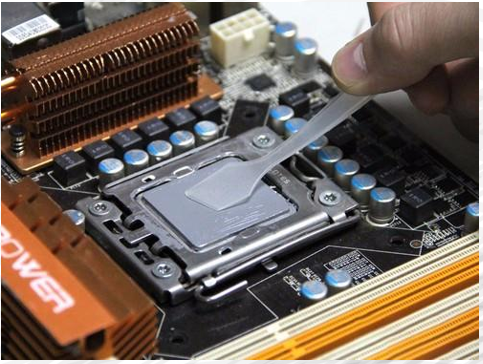

       Thermal grease is composed of heat transfer filler and base resin. Somai electronics provides silicon containing and non silicon series thermal grease. Silicon containing thermal grease uses silicon oil as base oil, and the service temperature is as high as 180 ℃, while the maximum service temperature of non silicon thermal grease is as high as 150 ℃. Thermal grease can be brushed manually or screen printed.

• 產品特點 Product Features

       -極低的熱阻 Very low thermal resistance

       -出色的長期穩定性 Excellent long term stability

       -可自動化點膠或絲網印刷 Can be used in pneumatic dispensing and screen printing systems

• 典型應用 Typical Application

       -電腦CPU、GPU Computer CPU/GPU

       -伺服和變頻 Servo and Frequency converter

       -熱電冷卻裝置 Thermoelectric Cooling Device

       -mos管 mosfet

       -IGBT模塊 IGBT Module

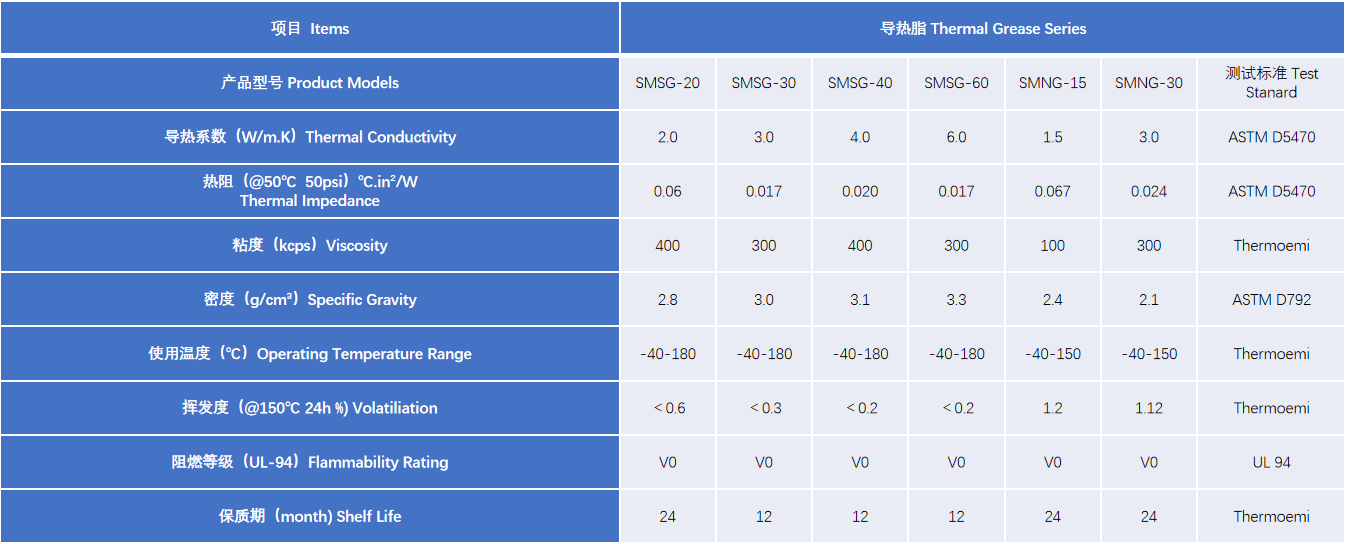

• 產品型號 Product Models
