• 產品介紹 Product Introduction

       導熱相變化材料是一類以相變化材料為基材制成的導熱材料，具有相變化的特性。使用時，當器件的工作溫度超過材料的相變化溫度時，相變材料就會變軟且粘度降低，填充到熱源和散熱器之間，相對于普通導熱材料，相變材料擁有更好的潤濕性，接觸熱阻更低，導熱效果更好。

       Thermally conductive phase change materials are a kind of thermally conductive materials made of phase change materials, which have the characteristics of phase change. When in use, when the working temperature of the device exceeds the phase change temperature of the material, the phase change material will become soft and the viscosity will be reduced. It will be filled between the heat source and the radiator. Compared with ordinary heat conducting materials, the phase change material has better wettability, lower contact thermal resistance and better heat conduction effect.

• 產品特點 Product Features

       -更好的潤濕性，較低的接觸熱阻 Better wettability and lower contact thermal resistance

       -導熱性能較傳統材料更強 The thermal conductivity is stronger than that of traditional materials

       -可貼片可印刷，使用方便 It can be pasted, printed and easy to use

• 典型應用 Typical Application

       -IGBT模塊 IGBT module

       -DC/DC轉換器 DC / DC converter

       -無人機 UAV

       -汽車電子 Automotive electronics

       -緩存芯片 Cache chip

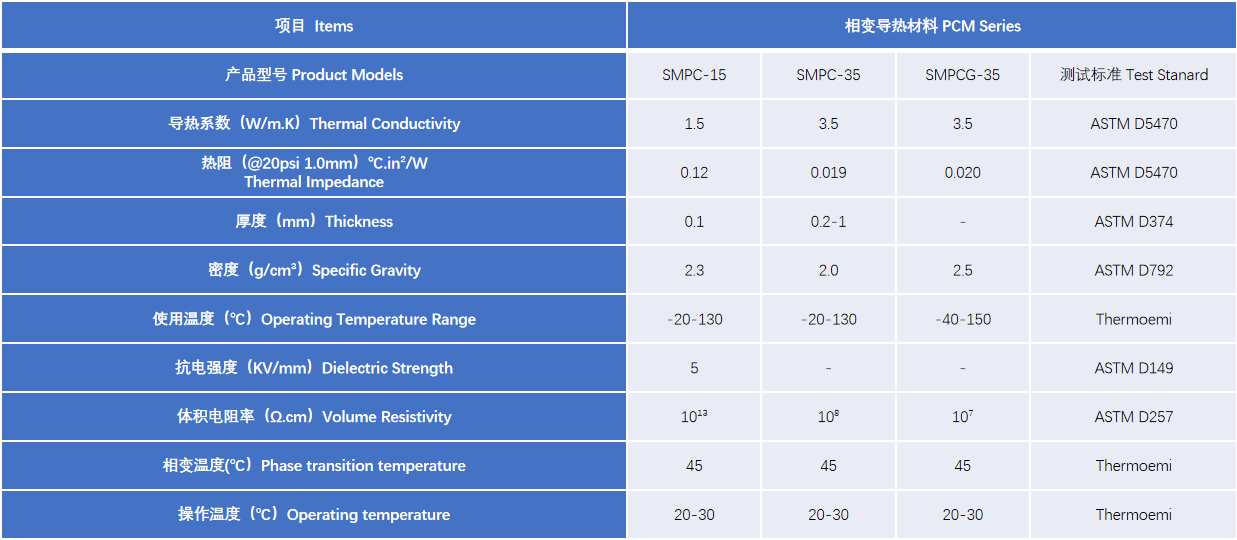

• 產品型號 Product Models
